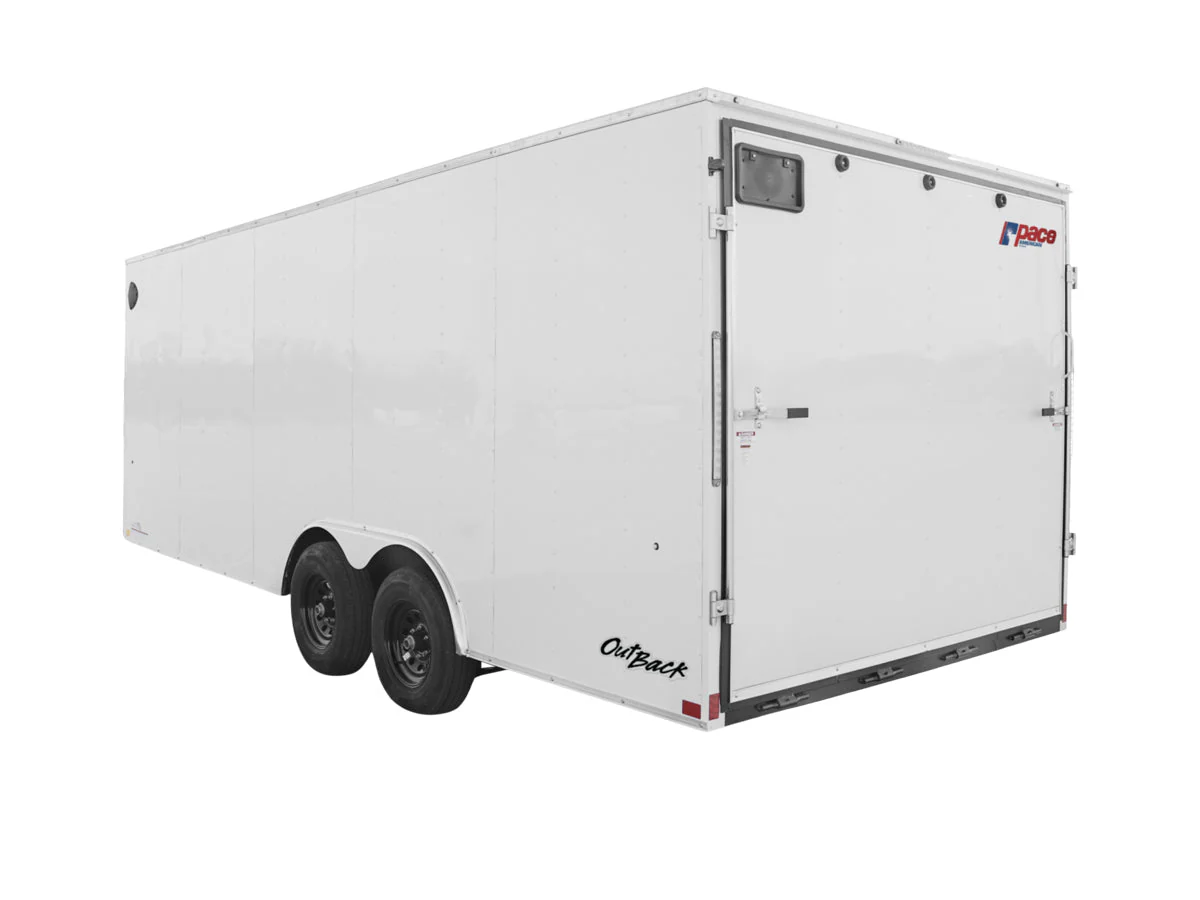

Pace American Outback DLX Car Hauler

DIMENSIONS

LENGTH:

16' - 26'

WIDTH:

8.5'

INTERIOR HEIGHT:

84"

DECK HEIGHT:

21" - 22"

DECK LENGTH:

203" - 323"

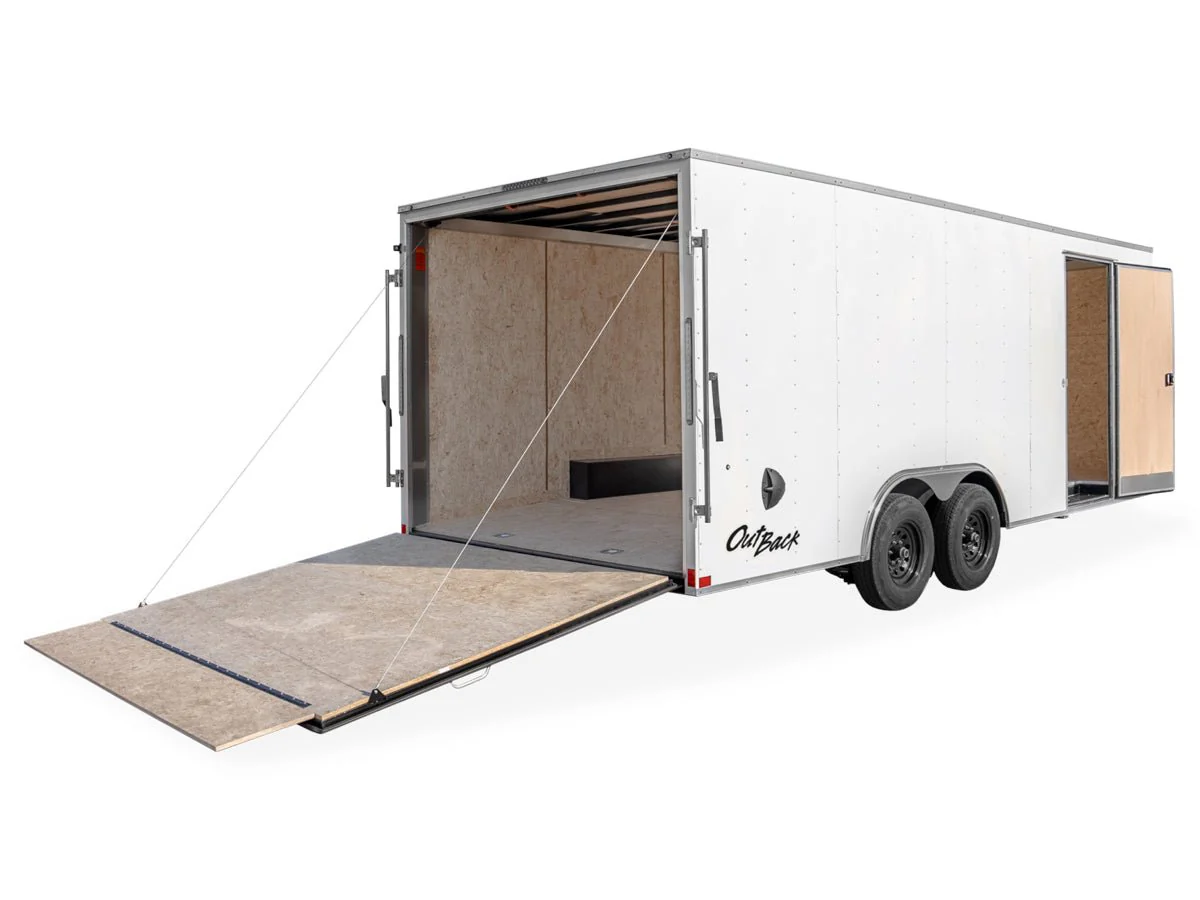

BEAVERTAIL:

32" - 48"

INTERIOR WIDTH:

97"

WIDTH BETWEEN FENDERS:

81.5"

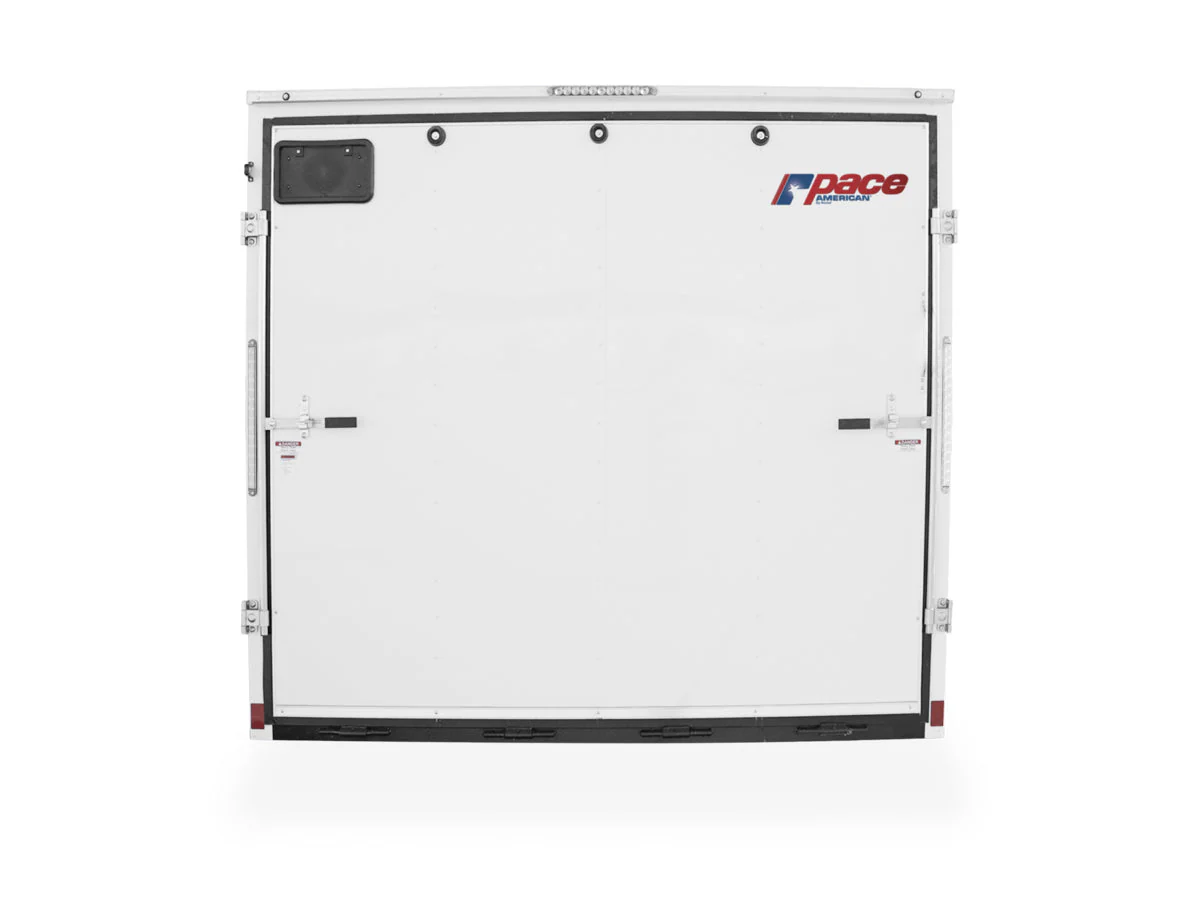

HEIGHT REAR OPENING:

83"

WIDTH REAR OPENING:

93.5"

TONGUE

PULL TYPE:

Bumper Pull

TYPE:

Bumper Pull

TUBING:

6" x 2" Steel Triple Tube

HEIGHT:

20" - 21"

JACK:

Single 2k Coupler Mounted Jack

COUPLER:

2 5/16" A-Frame Coupler

WEIGHT RATINGS

AXLE OPTIONS:

3.5k, 5k

GVWR:

7k - 9.9k

FRAME & CONSTRUCTION

MAIN FRAME:

6" x 2" Steel Tube

CROSSMEMBERS:

Formed Steel, 16" On-Center

WALL STUDS:

Steel Tube, 24" On-Center

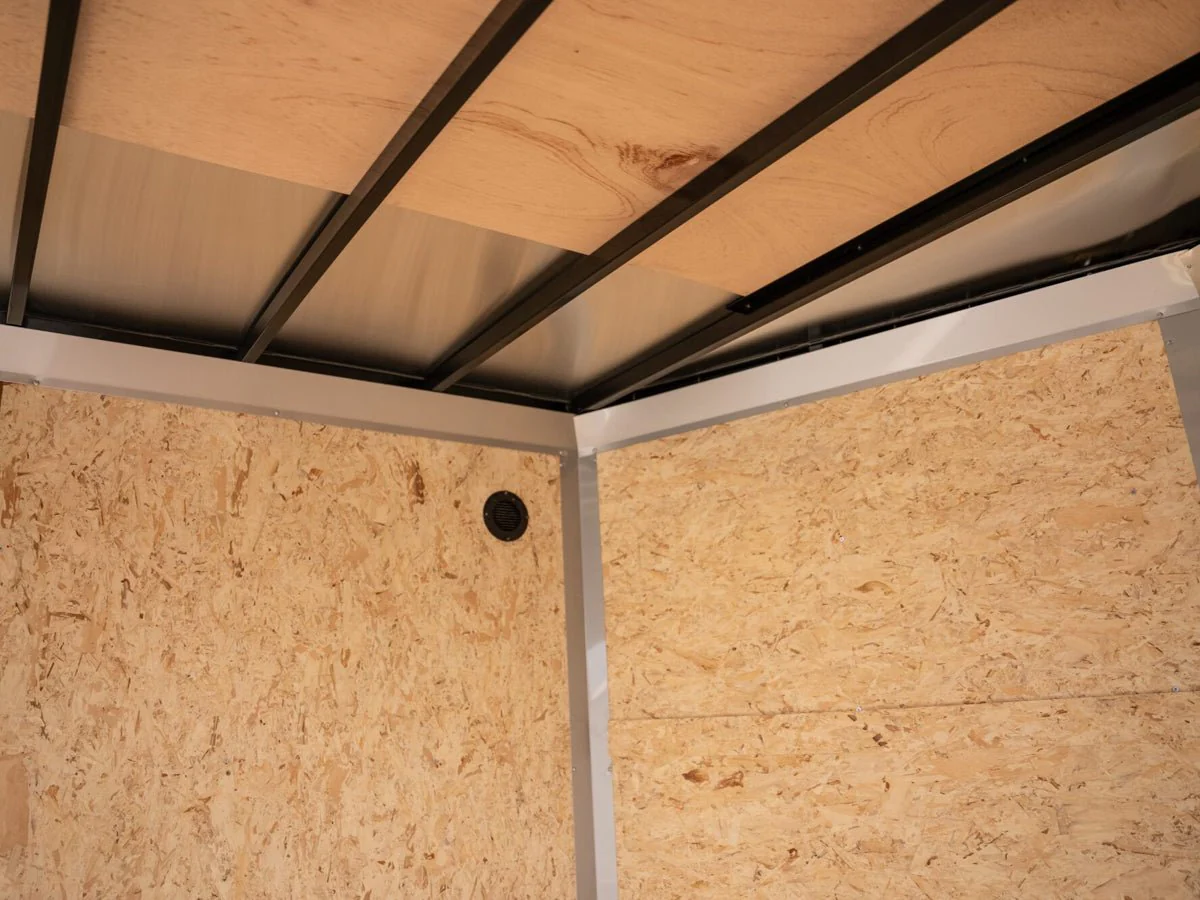

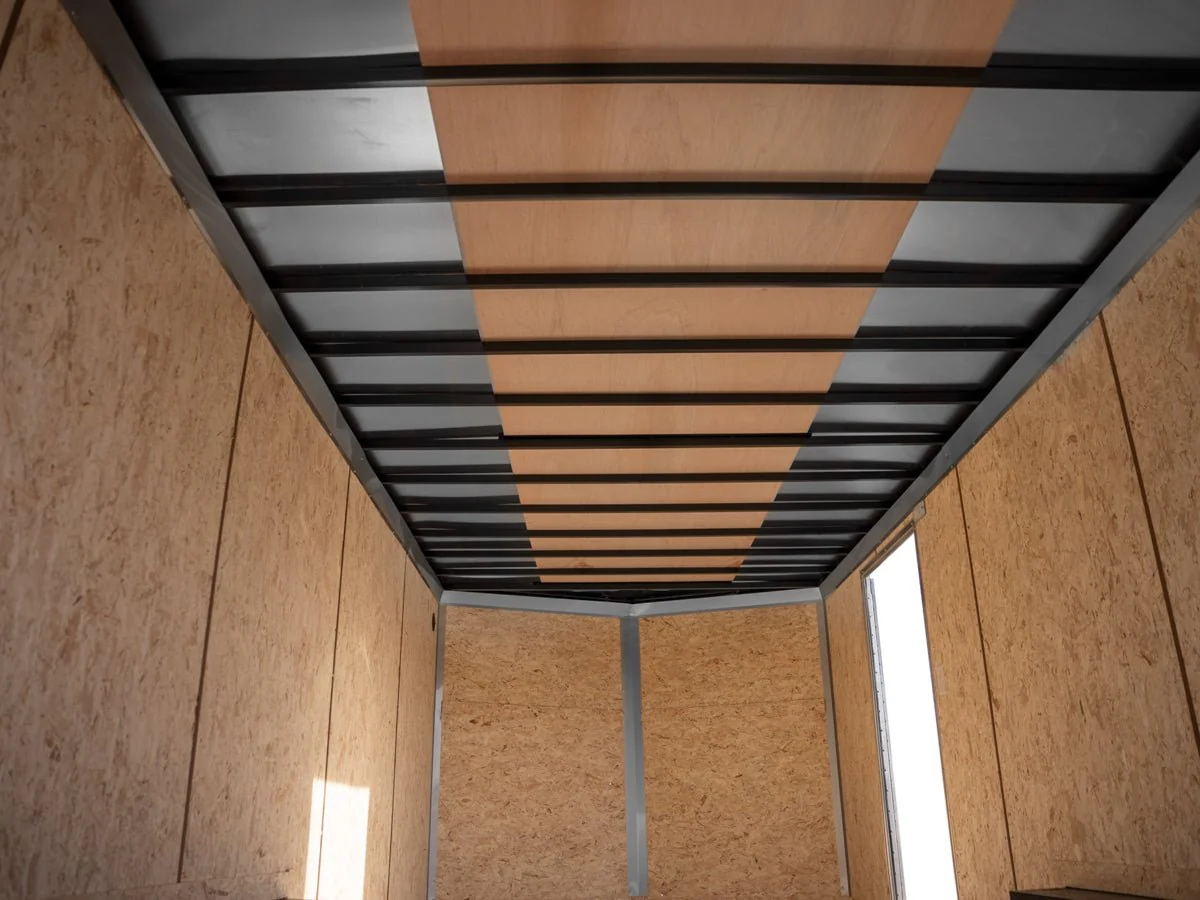

ROOF BOWS:

Steel Tube, 24" On-Center

DECK:

3/4" Engineered Wood

EXTERIOR FINISH:

.030" Aluminum

ROOF:

Flot Top Seamless Aluminum

FRONT PROFILE:

16" V-Nose

FENDERS:

Flush Smooth Aluminum Fenders

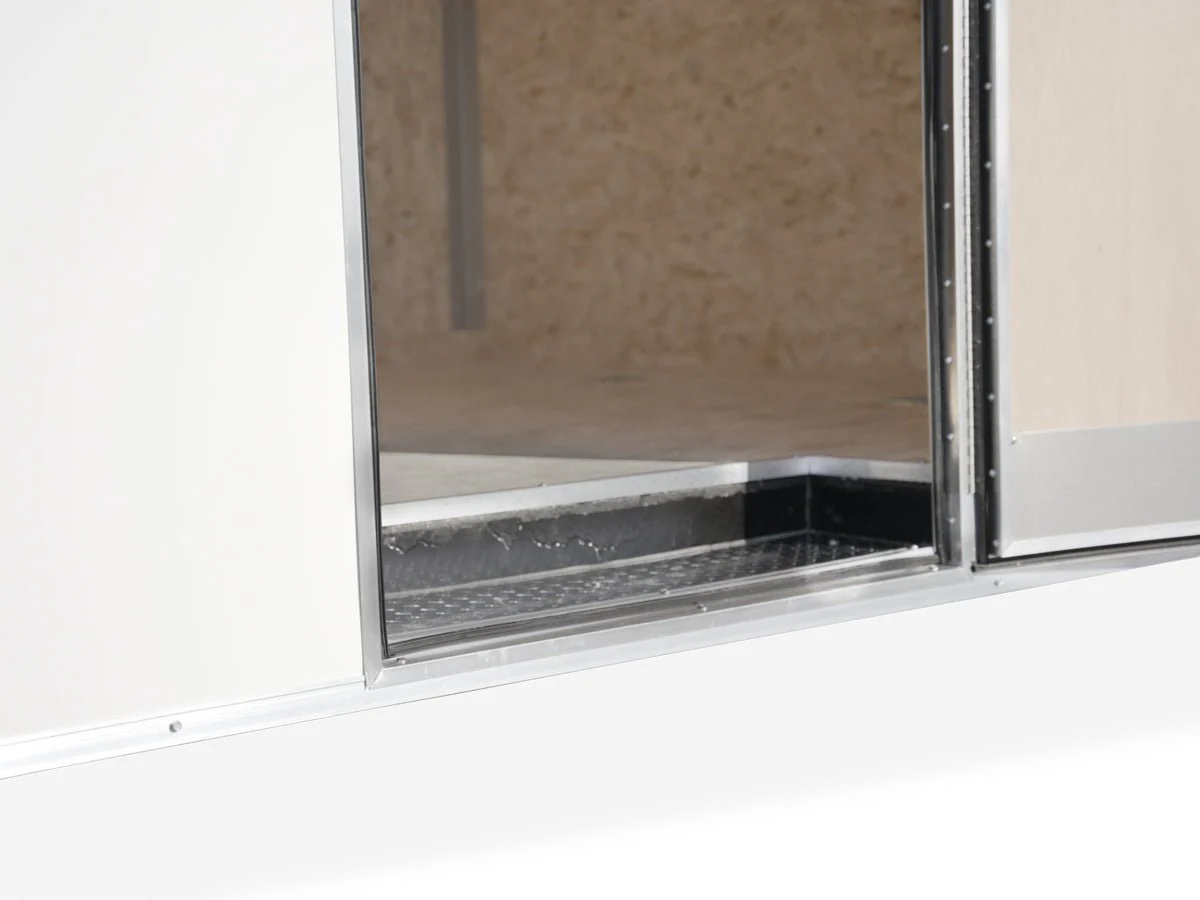

SIDE DOOR:

36" Wide Flush Lock, Plastic Holdback

VENTS:

Sidewall Airflow Vents

EXTERIOR TRIM:

1.5" Bottom Extrusion, 2.7" Top Extrusion

RUNNING GEAR

AXLE TYPE:

3,500 lb Easy Lube Axle
5,200 lb Easy Lube Axles

AXLE COUNT:

2

TIRES:

ST205/75R15 - 6 Ply on 3.5k Axles
ST225/75R15 - 8 Ply on 5.2k Axles

RIMS:

15" 5-Hole Steel Wheels - 3.5k Axles
15" 6-Hole Steel Wheels - 5.2k Axles

BRAKES:

Drop Spring Brake

SUSPENSION:

Spring

INTERIOR

WALLS:

Engineered Wood

INTEGRATED STEP:

Interior Recessed Step

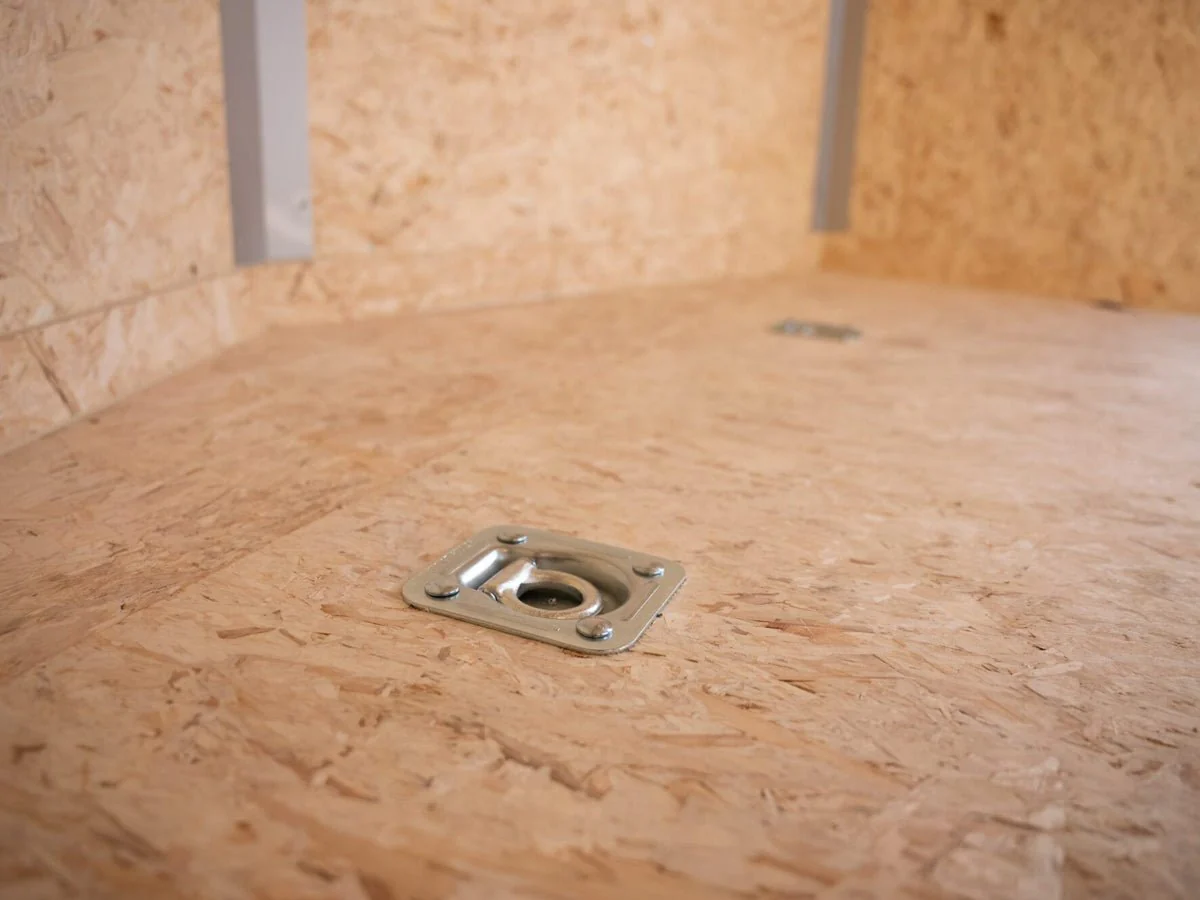

CARGO CONTROL:

(4) 5,000lb Recessed D-Rings

INTERIOR TRIM:

Engineered Wood Wall Transitions

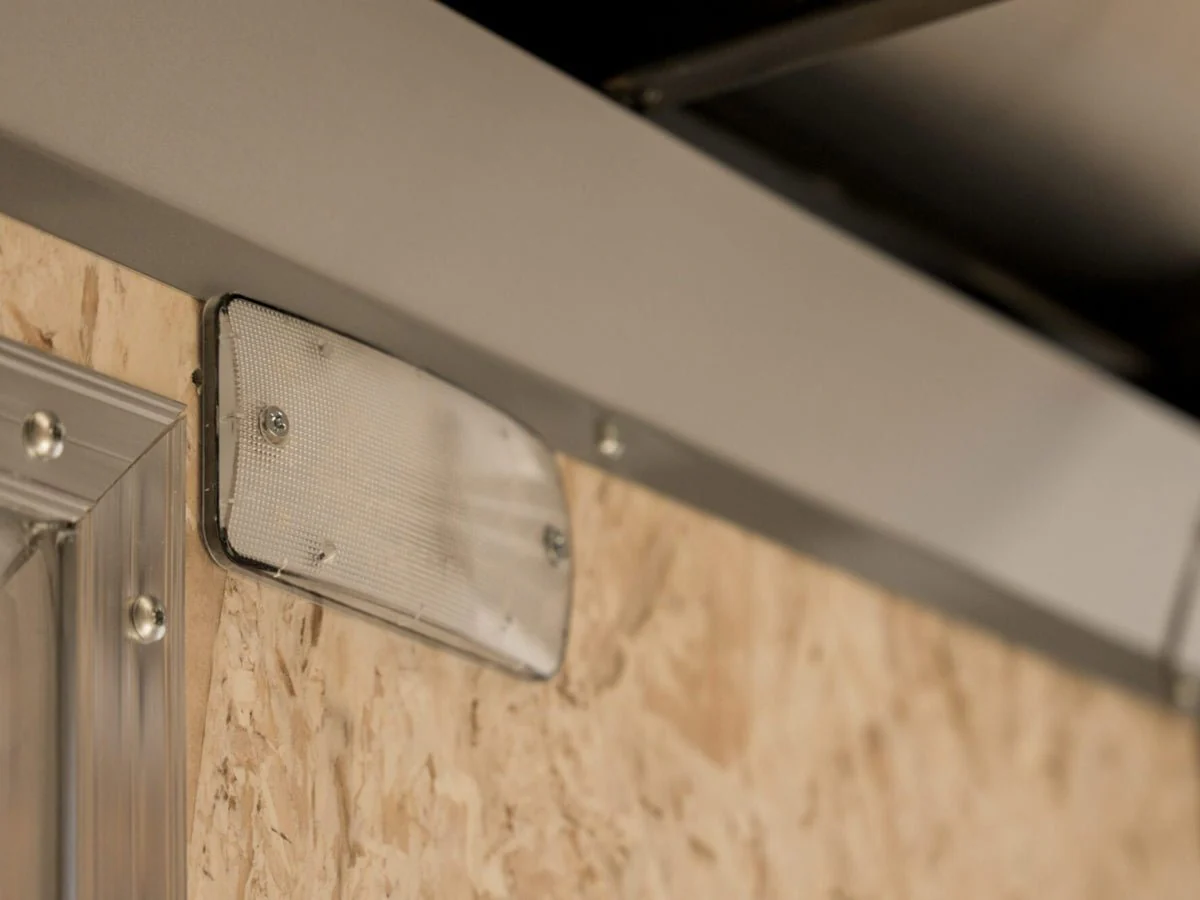

INTERIOR LIGHTS:

(2) LED Dome Lights, Wall Mount

SWITCHES:

1 - Dome Light Switch (12v)

ELECTRICAL & LIGHTING

REAR LIGHTS:

LED DOT Compliant Lighting

INTERIOR LIGHTS:

1 - Switch Activated 12V Dome Light

WIRING:

Weather Resistant Wiring Harness
